AD-ASMB-808
Intel® Xeon® W Processors CEB Server Board with 8 x DDR5, 7 x PCIe x16 for Optimized design for Max 3-4 dual-slot GPU support
- LGA4710 CEB server board with Intel Xeon® GNR-W 690/670/650/630 series, TDP up to 350W
- DDR5 6400 MHz RDIMM up to 2TB (8 DIMMs), also supports MRDIMM
7 x PCIe x16 (Gen5) - Intel® X710 dual 10GbE ports
- 8 x SATA 3(via 2 x SlimSAS) and 2 x M.2 connectors (PCIe x4)
- 7 x USB 3.2 Gen1 (5 on Rear, 2 via internal header), 1 x USB 3.2 Gen2 (Type E-key), 1 x USB 3.2
- Gen2x2 Type-C, 3 x USB 2.0 (1 Type-A, 2 via internal header)
- 0 ~ 60°C (32 ~ 140°F) ambient operating temperature range
Datasheet

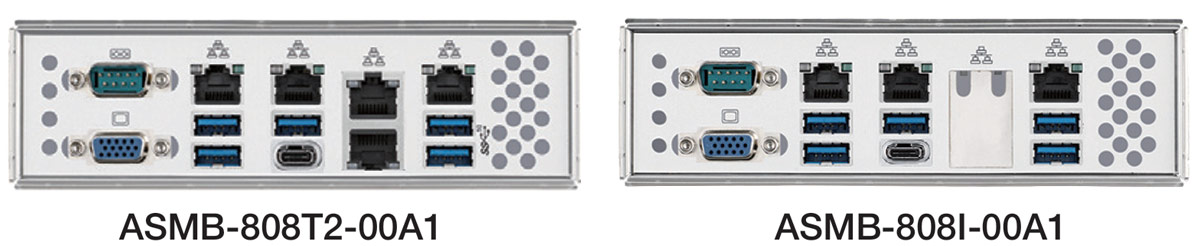

| Model | ASMB-808T2-00A1 |
|---|---|
| CPU | Intel® Xeon® GNR-W 690/670/650/630 processor |
| Socket Q'ty | 1 x LGA4710 |
| TDP | Up to 350 W |
| Type and Speed | DDR5 6400 MHz ECC-REG RDIMM ; supports MRDIMM |
| Channel | 8 |
| System Max Capacity | 2 TB |
| PCIe/PCI Module | 7 x PCIe 5.0 x16 |
| MCIO | 2 x PCIe 5.0 x8, CXL support |
| M.2 | 2 x M.2 2280 M-Key (PCIe Gen4 x4) |
| Display | 1 x VGA port |
| USB | 5 x USB 3.2 Gen1, 1 x USB 3.2 Gen2x2 Type-C |
| Controller | Intel® I226LM, Intel® E610 |
| 2.5GbE | 2 |
| 10GbE | 2 |
| TPM | TPM 2.0 onboard |
| SATA Port | 8 x SATA 3.0 (6 Gb/s) via 2 x SlimSAS |
| System Fan | 6 x system, 1 x CPU |
| Controller | Aspeed AST2600 |
| IPMI | Advantech remote monitoring utility |
| Output | System Reset |
| Operating Temperature | 0 ~ 60 °C, depends on CPU speed and cooler solution |
| Non-Operating Temperature | -40 ~ 85 °C (-40 ~ 185 °F) |
| Operating Humidity | 95% @ 40 °C, non-condensing |
| Non-Operating Humidity | 10 ~ 95% @ 60 °C, non-condensing |
| Form Factor | CEB |
| Dimensions (L x H) | 304.8 x 266.7 mm (12" x 10.5") |
| EMC | CE/FCC |

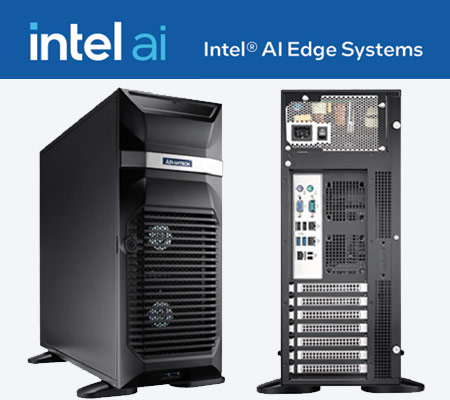

Scalable AI Workstation Tower for Professional: HPC-7000 + ASMB-808
- CPU: Intel® Xeon® 690/670/650/630 processor
- Graphics: Support discrete GPU configurations: (3pcs) Intel® Arc™ Pro B60 Graphics
- Memory: 8 x DDR5 6400 MHz RDIMM up to 2TB, also supports MRDIMM
- Storage: 8 x SATA 3.0 (6 Gb/s) via 2 x SlimSAS
- LAN: Dual 2.5GbE, Dual 10GbE
- Operating / Storage Temp.: 0°C ~ 60°C / -40°C ~ 85°C
- Dimension (W x D x H): 267.1mm x 458mm x 500mm
- OS: Windows® 11 (64-bit)

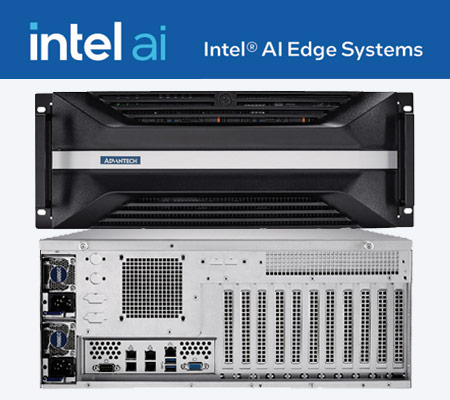

4U Multi-GPU Workstation for AI and Professional Computing: HPC-7485 + ASMB-808
- CPU: Intel® Xeon® 690/670/650/630 processor
- Graphics: Support discrete GPU configurations: (1-4pcs) Intel® Arc™ Pro B70 Graphics
- Memory: 8 x DDR5 6400 MHz RDIMM up to 2TB, also supports MRDIMM
- Storage: 8 x SATA 3.0 (6 Gb/s) via 2 x SlimSAS
- LAN: Dual 2.5GbE, Dual 10GbE
- Operating / Storage Temp.: 0°C ~ 60°C / -40°C ~ 85°C
- Dimension (W x D x H): 435mm x 176mm x 660mm
- OS: Windows® 11 (64-bit)
