AS-IMB-1253-WV
Mini-ITX Motherboard supports Intel® Core Processors Series 3 (Wildcat Lake-U)
- Intel® Core Processors Series 3 (Wildcat Lake-U)
- 1 x 262-pin SO-DIMM DDR5 6400 MHz, up to 64GB, supports In-Band ECC
- 1 x PCIe x1 (Gen4), 1 x USB 3.2 Gen2x2, 2 x USB 3.2 Gen2, 6 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 2 x SATA3
- 1 x Intel 2.5 Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
- Supports Triple display, 2 x HDMI 2.0b, 1 x DP 1.4a (1 from Type-C), 1 x LVDS or eDP
- OOB Function (Optional)
- ATX PWR (24+4-pin) and 9V~28V DC-In co-design
Datasheet
| Processor System | |
| CPU | Intel® Core Processors Series 3 (Wildcat Lake-U) IMB-1253M-WV (Core™ 5 320, 2P+4LPE) IMB-1253E-WV (Core™ 3 304, 1P+4LPE) *All CPU sku can support In-Band ECC |
| BIOS | AMI SPI 256 Mbit |
| Form Factor | |
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.55-in, 17.0 cm x 17.0 cm x 3.93 cm) |
| Memory | |
| Technology | Single Channel DDR5 6400 MHz |
| Capacity | 64GB |
| Socket | 1 x 262-pin SO-DIMM |
| Graphics | |
| Controller | Intel® Graphics |
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz (Connector shared with eDP) |
| eDP | Max resolution up to 1920 x 1080@60Hz (Connector shared with LVDS) |
| MultiDisplay | Triple display (Included 1 output from Type-C) |
| Expansion Slot | |
| PCIe | 1 x PCIe x1 (Gen4) |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless |
| Audio | |
| Interface | Realtek ALC256 HD, High Definition Audio. |
| Ethernet | |
| Controller/ Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Intel® I226V with 10/100/1000/2500 Mbps |
| Connector | 2 x RJ-45 |
| Rear I/O | |

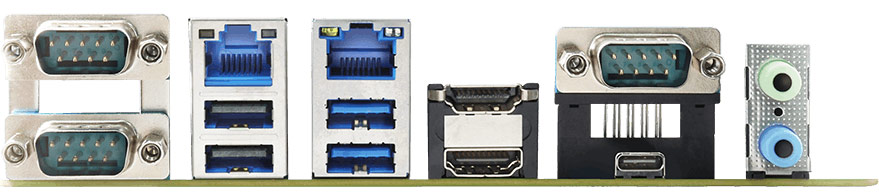

| HDMI | 2 x HDMI 2.0b |
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen2 2 x USB 2.0 1 x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output) |
| Audio | 2 Line-In / Line-Out (BOM option Mic-In/Line-Out) |
| COM | COM1 (RS-232/422/485) COM2, COM3 (RS-232) |
| Internal Connector | |
| USB | 4 x USB 2.0 (2 x 2.54mm pitch header) |
| COM | COM4, COM5, COM6 (RS-232) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| Security | |
| TPM | TPM Header Intel® PTT |
| Storage | |
| M.2 | 1 x M.2 (Key M, 2242/2280/3052) with PCIe Gen4 x1 for SSD |
| SATA | 2 x SATA3 (6Gb/s) |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Power Requirements | |
| Input PWR | ATX PWR (24+4-pin) and 9V~28V DC-In co-design |
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | -20ºC ~ 70ºC |
| Storage Temp | -40°C ~ 85°C |
| Operating Humidity | 5% ~ 90% (non-condensing) |
| Storage Humidity | 5% ~ 90% (non-condensing) |
| Accessories | |
| Gift Package | 1 x I/O Shield (13G02P145000AK) 2 x SCREW M3*2.5 (13G02P072010AK) 1 x SATA Power Cable (14G000100410AK) 2 x SATA Cable (14G00010107DAK) |
| Bulk Package | 1 x I/O Shield (13G02P145000AK) 2 x SCREW M3*2.5 (13G02P072010AK) |
